DWR Round-serie

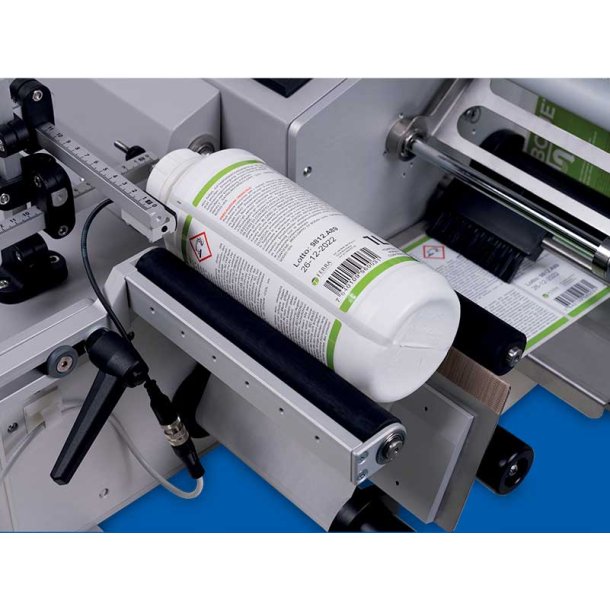

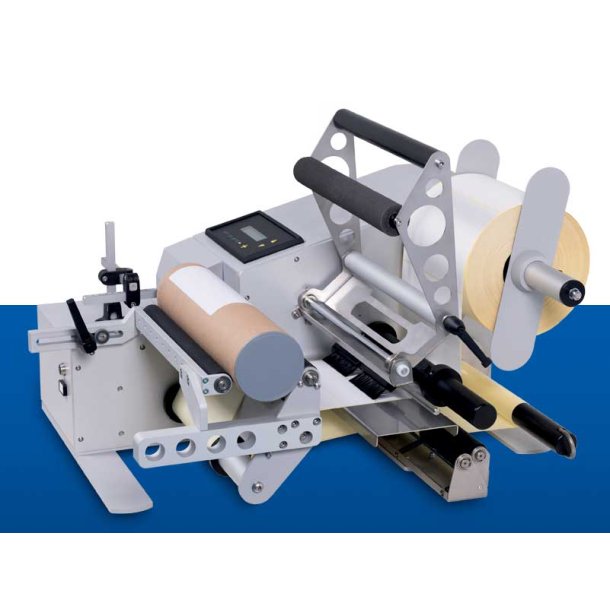

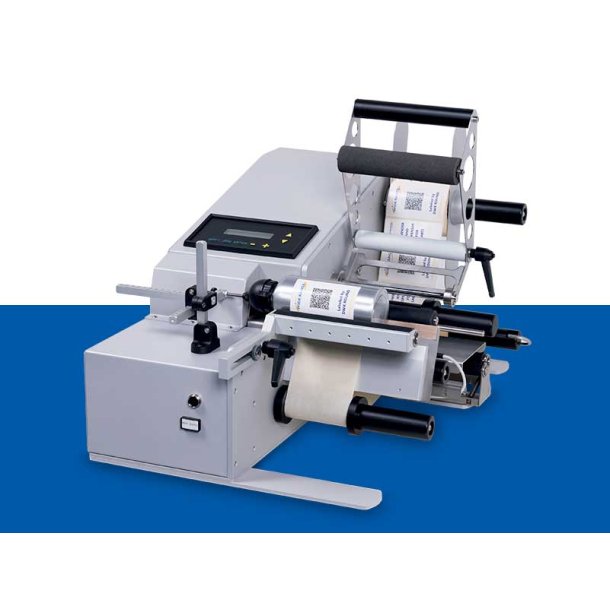

DWR ROUND is a semi-automatic labelling machine for the application of self-adhesive labels to cylindrical products.
It is available with a maximum label width of 200 mm, or 300 mm. and is equipped with an unwind unit which accepts reels with a maximum diameter of 300 mm, providing long operation autonomy.
The electronics consist of a single board featuring SMD technology. It uses a 32-bit microprocessor.

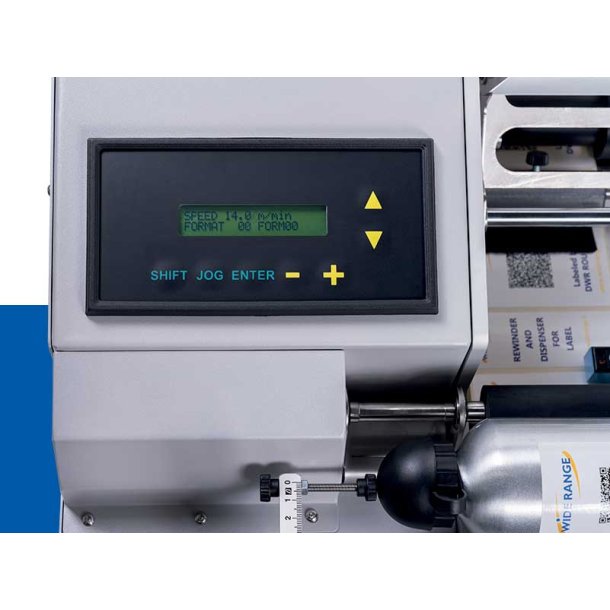

The user interface consists of a two-line, 20-character/line LCD display and 7 function keys.
The software allows up to 40 different operating programmes to be stored, including all information on the label and type of application, making format changes extremely quick.

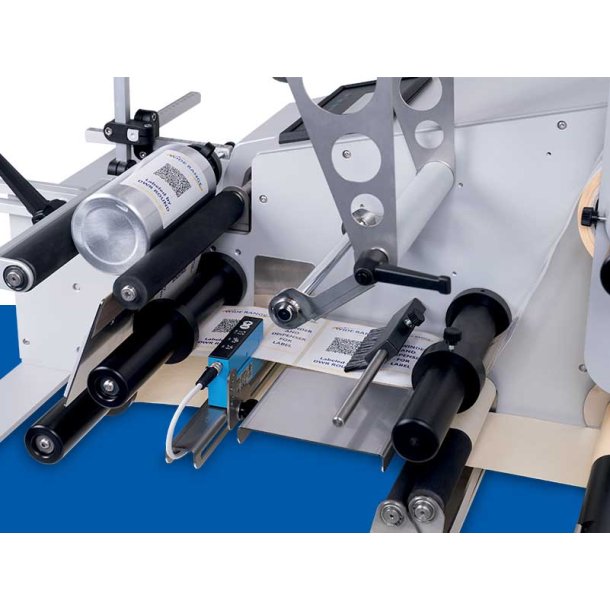

Labels are detected using a fork photocell, which reads the transparency; an ultrasound sensor which reads the thickness is available for when transparent labels are used.
DWR ROUND can apply wraparound or front/back labels, even of different dimensions positioned on the same reel. DWR ROUND can even apply labels in phase by reading a coloured notch on the product or a previously applied label, for example..

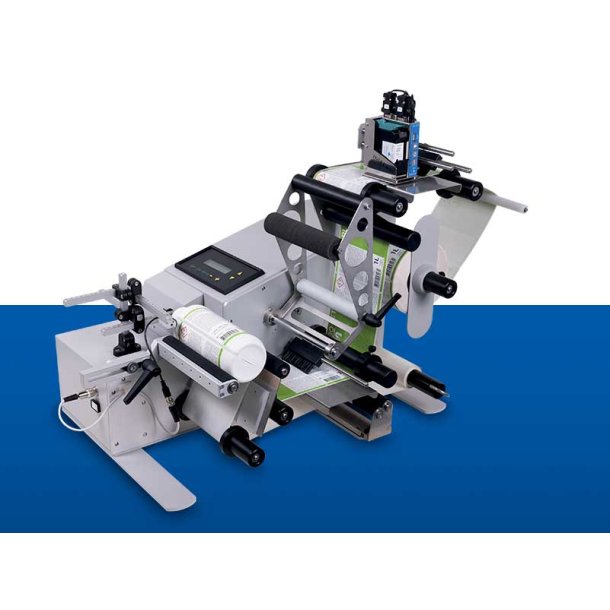

DWR ROUND can also be equipped with an inkjet marker with HP technology for printing variable data such as date and time, barcodes and text with a maximum height of 12.7 mm, a resolution of 300 dpi and speed synchronised with the label supply speed.
Teknisk Info
| DWR ROUND 200 | DWR ROUND 300 | |
| Product diameter: | 20 - 130 mm | 20 - 130 mm |
| Label width: | 15 - 200 mm | 15 - 300 mm |
| Label length: | 15 - 600 mm | 15 - 600 mm |
| Reel diameter: | 300 mm | 300 mm |
| Diameter of spindle: | 38 - 76 mm | 38 - 76 mm |
| Speed: | 4 - 20 m/m | 4 - 20 m/m |
| Output: | 1200 stk/t | 1200 stk/t |
| Power supply: | 230 Vac – 50 Hz | 230 Vac – 50 Hz |
| Power draw: | 200 W | 200 W |
| Dimensions: | 783 x 497 x 516 (H) | 843 x 600 x 516 (H) |
| 36 Kg | 40 Kg |
Datablad
